JX-SC3200-5/JX-SC4200-5 数控榫槽机
    发布时间: 2017-09-02 16:12


JX-SC3200-5/JX-SC4200-5数控榫槽机

CNC Mortising Machine

批量加工  五轴同步

CNC machining efficient mass mortise

无需编程,对点即自动生成加工程序

异形工件、不同榫槽长度/深度一次加工完成

No need to program, the program is automatically generated on the point

Shaped workpieces, different groove lengths/depths are processed in one pass


核心元件组成




五刀头设计,可装夹各种不同的刀具进行加工




实物展示:Physical display




产品特点:Features


1  采用5轴多工位,高速连续铣削,一组工件加工的同时可以对另一组进行拆卸,生产效率高。

2  采用广州奇芯系统,调节方便,控制可靠,方便易学,利用对刀杆进行对刀,无需编程,对点即自动生成加工程序,生产时仅需按下确认按钮即可自动加工。

3  精度高,数控输入输出,确保每组工件完全一样。

4  本设备适用于加工各种大小不同,形状不同的工件,实用性强,尤其对于加工弧形孔、椭圆孔、异形孔都有着明显的优势。更可加工复杂的平面,同一工件榫槽长度和深度不同以及复杂的异形工件一次加工完成。

1 5-axis multi-station, high-speed continuous milling, one set of workpieces can be disassembled at the same time, and the production efficiency is high.

2 It adopts Guangzhou Qi core system, which is convenient to adjust, reliable in control, convenient and easy to learn. It uses the tool holder to perform tool setting. It does not need to be programmed. The machining program is automatically generated on the point. It can be processed automatically by pressing the confirmation button.

3 High precision, CNC input and output, to ensure that each group of workpieces is exactly the same.

4 This equipment is suitable for processing all kinds of workpieces with different sizes and shapes. It has strong practicability, especially for processing arc-shaped holes, elliptical holes and special-shaped holes. It can process complex planes, different lengths and depths of the same workpiece, and complex shaped workpieces in one process.



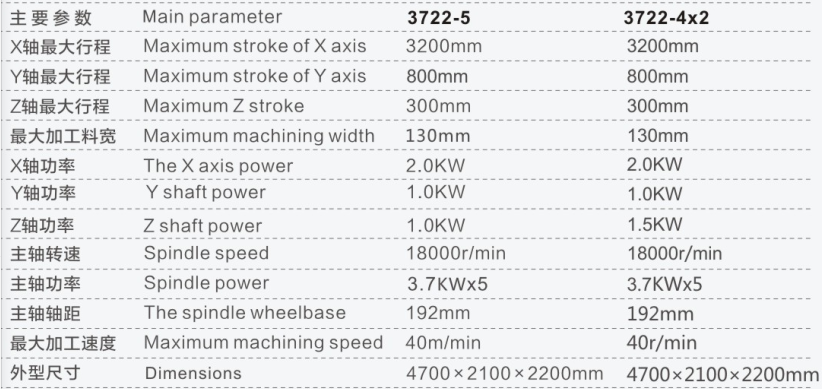

产品参数

JX-SC3200-5/JX-SC4200-5
X轴最大行程 Max. stroke of X axis 3200mm / 4200mm
Y轴最大行程 Max. stroke of Y axis 800mm
Z轴最大行程 Max. stroke of Z axis 300mm
最大加工料宽 Max.working width 130mm
X轴功率 X axis power 2kw
Y轴功率 Y axis power 1kw
Z轴功率 Z axis power 1kw
主轴转速 Spindle speed 18000r/min
主轴功率 Spindle power 3.7kw x 5
主轴轴距 Spindle wheelbase 192mm
最大加工速度 Max. working speed 40m/min
外形尺寸 Dimensions 4800x2300x2400mm   6100x2300x2400mm
装卸尺寸 Loading and unloading size 4800x1900x2400mm   6100x1900x2400mm
