JX-ZX1000-4×4 双工位钻铣加工中心
    发布时间: 2020-12-19 14:18

JX-ZX1000-4×4

双工位钻铣加工中心

Double Station Drilling And Milling Machining Center

现代欧式、美式、新中式家具领域所研发的一款新产品

适用于加工餐桌、餐椅脚、等异形实木脚类产品

A new product developed in the field of modern European, American, and new Chinese furniture

Suitable for processing table, dining chair legs, and other special-shaped solid wood products

双工位交替加工

刀头组件360度旋转加工

Double-station alternate processing

360-degree rotating machining of cutter head assembly



(1)数控系统采用“台湾亿图CNC数控系统”。加工效率高,效果好,图形化编程,支持模块加工轨迹编程,满足不同种类的铣,削加工要求,易学易用;

(2)部件优良,主要部件均采用高稳定性能的进口部件,主轴轴承为高精度进口陶瓷轴承,噪间低、寿命长;

(3)床身全钢结构焊接而成,经时效处理,长期使用永不变形。采用重型机床的台面和龙门式横梁结构,结构稳固;

(4)AB工位交替加工,可实现一工作位加工,另一工作位上下料的不间断生间加工;

(5)左右工作台上采用两端顶料360度旋转夹具,可一次完成多种复杂工件加工;

(6)配有4组不同的刀具,具备360度任意角度的钻孔、铣槽、榫头等铣削加工功能;

1. The numerical control system adopts "Taiwan Edraw CNC numerical control system". High processing efficiency and good effect; graphical programming, support module processing path programming, meet different types of milling processing requirements, easy to learn and use.

2. The components are excellent, the main components are all imported components with high stability, and the spindle bearings are high-precision imported ceramic bearings, with low noise and long life.

3. The machine bed is made of welded steel structure, after aging treatment, it will never deform after long-term use. The table top and gantry beam structure of heavy-duty machine tools are adopted, and the structure is stable.

4. Alternate processing at ab station can realize processing at one station and uninterrupted processing of loading and unloading at the other station.

5. The left and right worktables adopt 360-degree rotating fixtures for lifting materials at both ends, which can complete a variety of complex workpiece processing at one time;

6. Equipped with 4 sets of different tools, with 360-degree arbitrary angle drilling, milling, tenon and other milling processing functions.

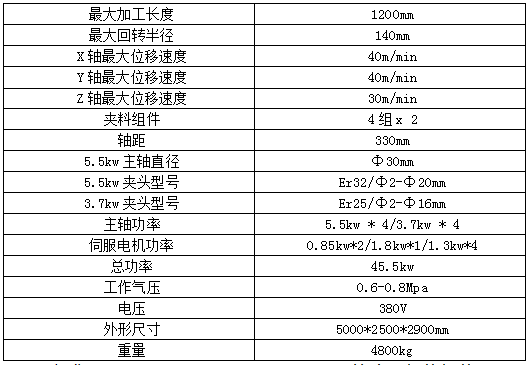

最大加工长度

Max.processing length

1000mm

最大回转半径

Max.tuming radius

140mm

X轴最大位移速度

X-axis Max.displacement speed

40m/min

Y轴最大位移速度

Y-axis Max.displacement speed

40m/min

Z轴最大位移速度

Z-axis Max.displacement speed

30m/min

夹料组件

Clipping components

4组x 2

5.5kw主轴直径

5.5kw spindle diameter

Φ25mm

5.5kw夹头型号

5.5kw chuck modle

Er32/Φ2-Φ20mm

3.7kw夹头型号

3.7kw chuck modle

Er25/Φ2-Φ16mm

主轴功率

Spindle power

5.5kw * 4/3.7kw * 4

伺服电机功率

Servo motor power

0.85kw * 2/1.8kw * 1/1.3kw * 4

总功率

Total Power

45.5kw

工作气压

Workpiece pressure

0.6-0.8Mpa

电压

Voltage

380V

重量

Weight

4800kg

外形尺寸

Dimensions

5000*2900*2450mm
